Yokohama Pneumatic Rubber Fender

Yokohama Pneumatic Rubber Fender


1. Material: Natural Rubber and Nylon Cord
2. Fittings: Tire Net, Shackle, Swivel, Chain
3.Type: CTN Type and Sling Type
4. Inner Pressure: 50 Or 80 Kpa
5. Size Range: Dia 0.5-4.5m, Len 1.0-12m
6. Certs: CCS, BV, ISO, RS, ABS, Etc


31_05.jpgOverview

Yokohama pneumatic rubber fenders have been in use for around 50 years. It is the leading anti-collision device for marine application in the world. This compressed air filled rubber fender is used as a protective medium for ship to ship contact (STS), ship to quay (STQ) and ship-to-berthing (STB).

Yokohama pneumatic rubber fenders can be delivered in various sizes and types. Chain and tyre net (CTN) type is usually recommended to protect the fender body, but sling type or body only is also available.



Features

1. High energy absorption with a low reaction force

2. Light weight, portable and floatable, can be installed

  and replaced easily

3. Heavy duty and long service life-over 10 years
4. Supplied as sling type (body only) or with chain and tire net

   for protection of the fender body
5. Suitable for locations with large and small tidal differences








Application

1. Offshore platform
2. Oil and gas tankers
3. Fast ferries and aluminium vessels
4. Temporary and permanent installations
5. Rapid response and emergencies
6. In ports with extreme tidal variations
7. Fishing vessel, transport ship and ocean trawler

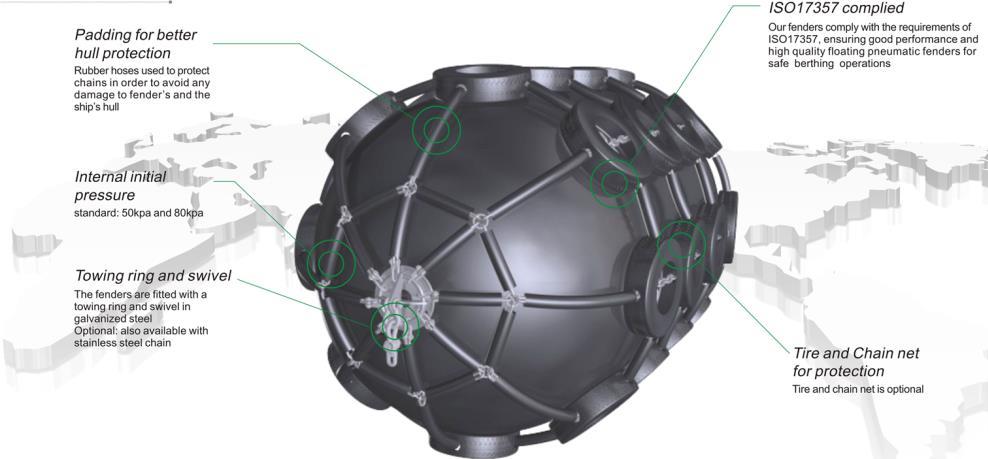

1.Outer Rubber

Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber ball from damage of external force.

2. Synthetic cord reinforced rubber layer

Reinforced cord rubber layer is composed of winding synthetic cord layer, it is mainly used for maintain the internal air pressure.

3. Inner Rubber

On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.

4. End Flange

The metal parts at both ends of fender, which can be fitted with charging valve and safety valve.

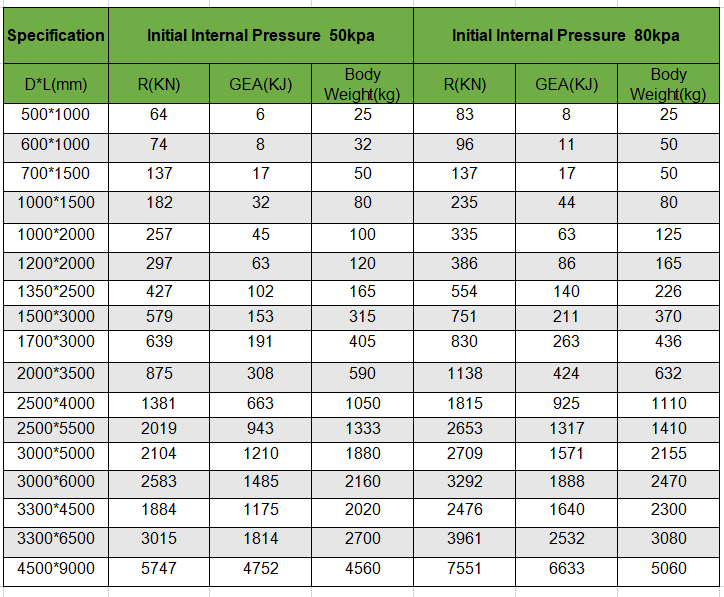

Florescence Pneumatic Rubber Fender standard sizes

yokohama fender.png
